6 L Pneumatic & Manual Oil Extractor Pump

6 L Pneumatic & Manual Oil Extractor Pump

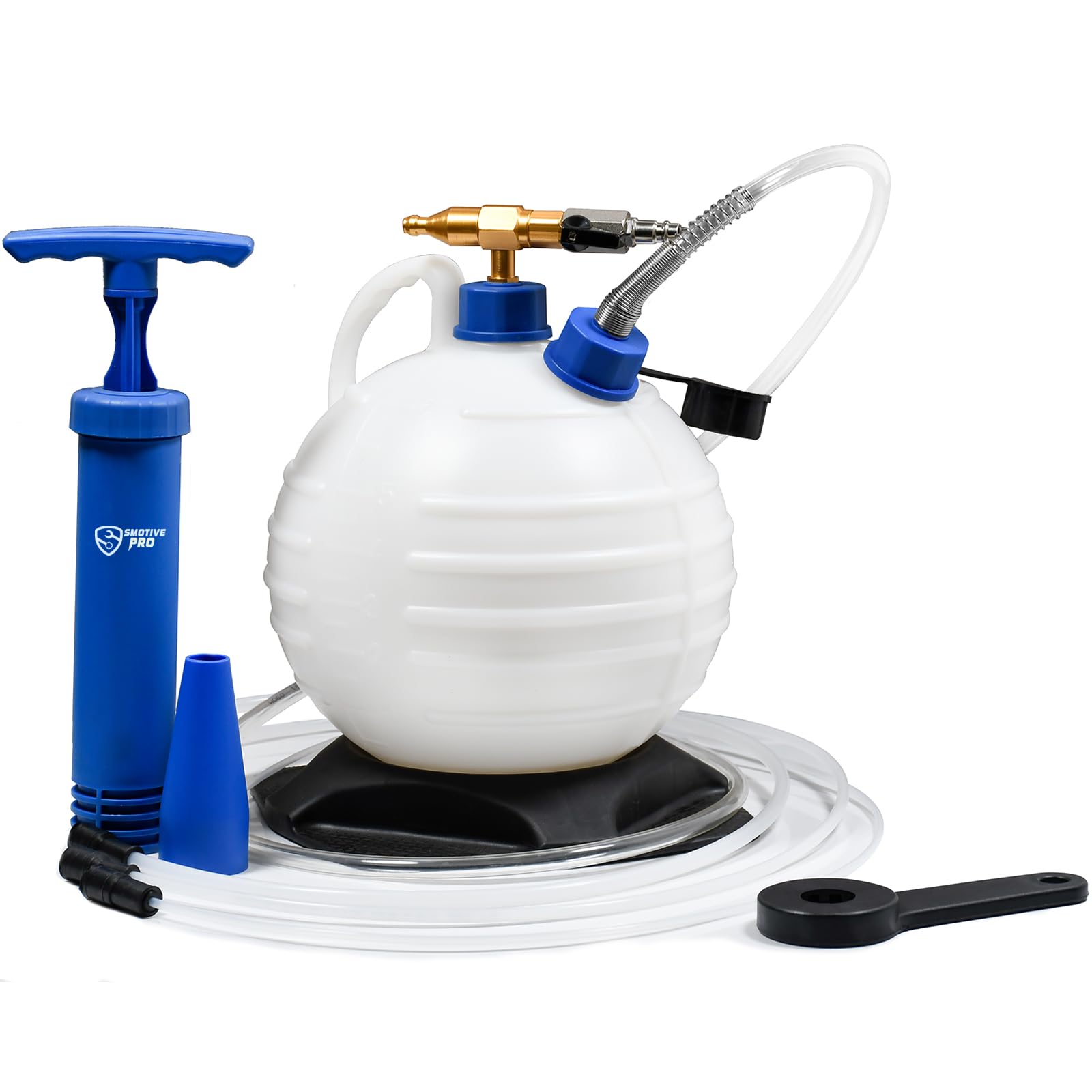

This 6 L vacuum extractor offers two operating modes for fluid service. Use the manual pump when no air supply is available, or connect an air compressor for pneumatic vacuum extraction. It is designed to draw engine oil or transmission fluid through a compatible dipstick tube.

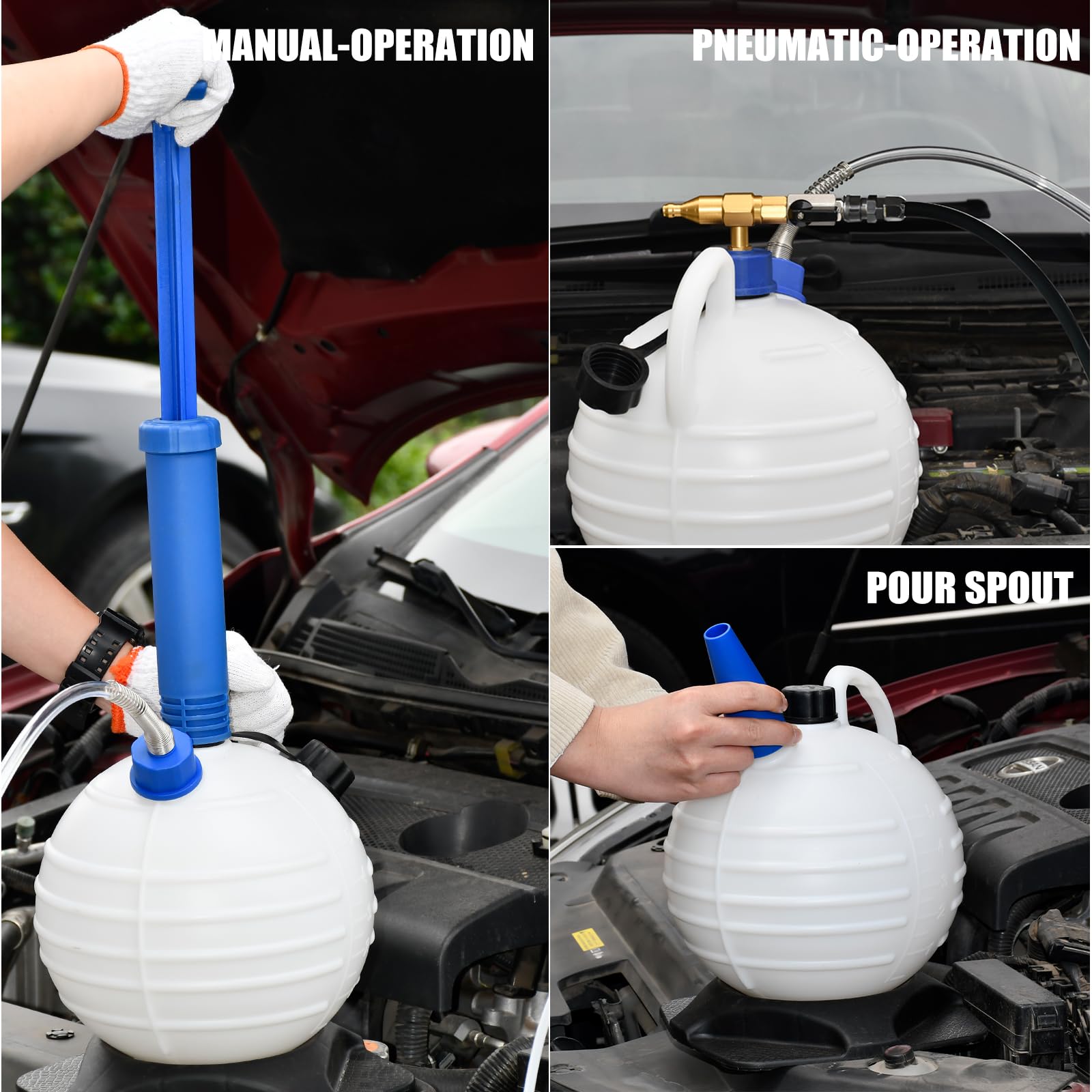

Choose the Operating Mode for Your Workspace

• Manual mode: Operates by hand, without an air compressor.
• Pneumatic mode: Connect the air inlet coupler to an air compressor to create vacuum extraction.

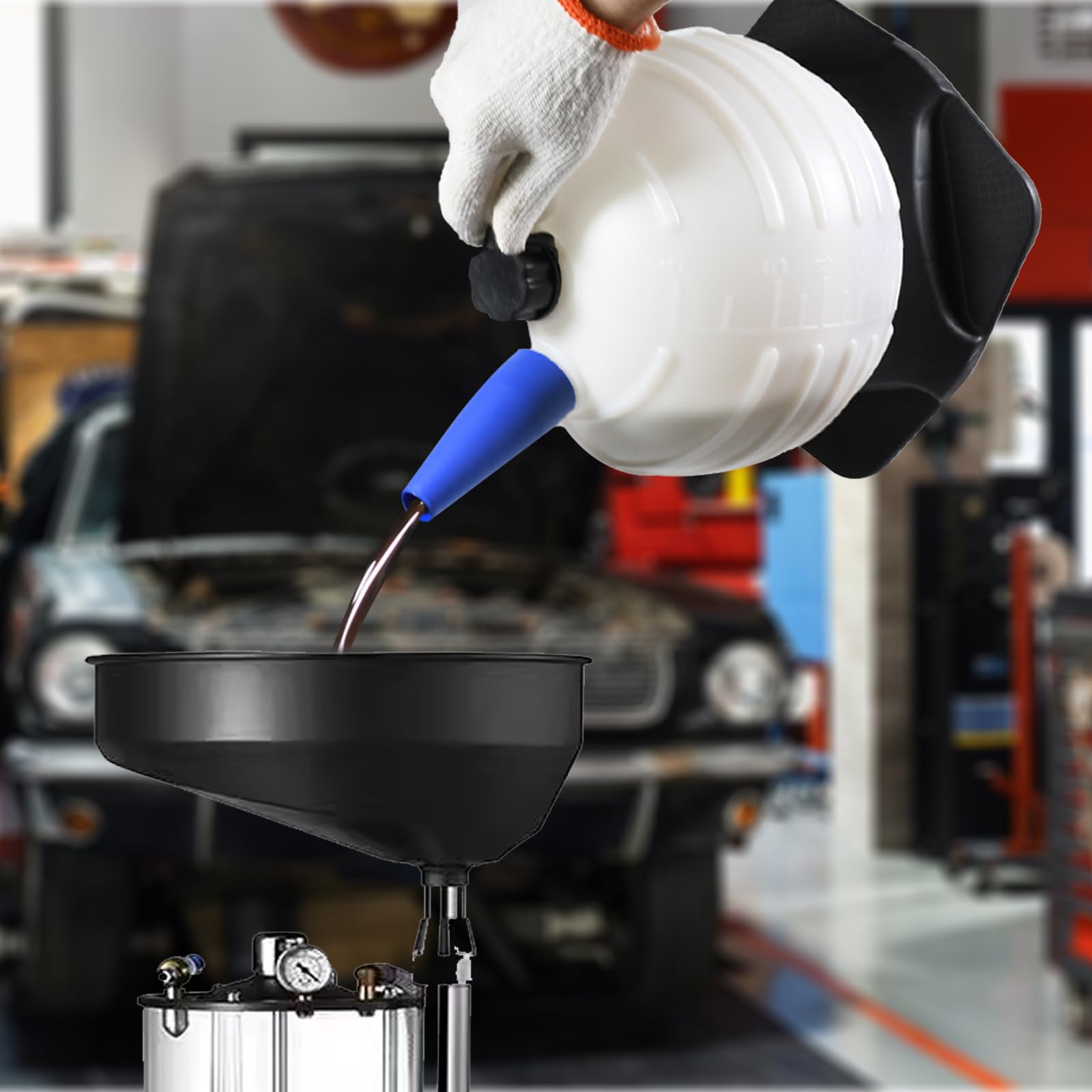

• Graduated tank: The calibrated container wall helps you monitor the amount of fluid removed.

Hose Selection and Access

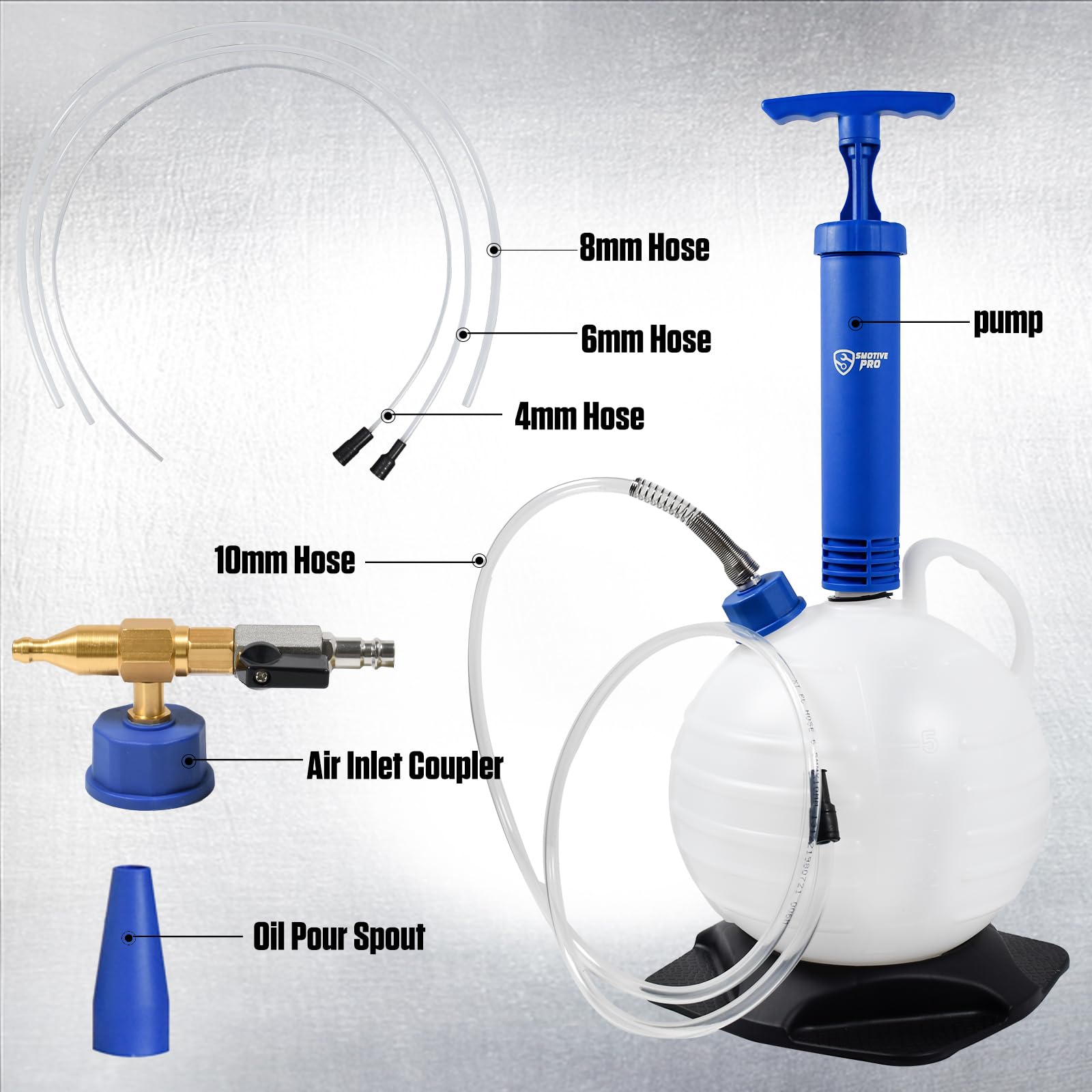

Check the dipstick-tube path and available access before starting. The extractor uses a 59 in. main suction probe and includes three 39 in. extension hoses in 4 mm, 6 mm and 8 mm sizes for different engines or machines.

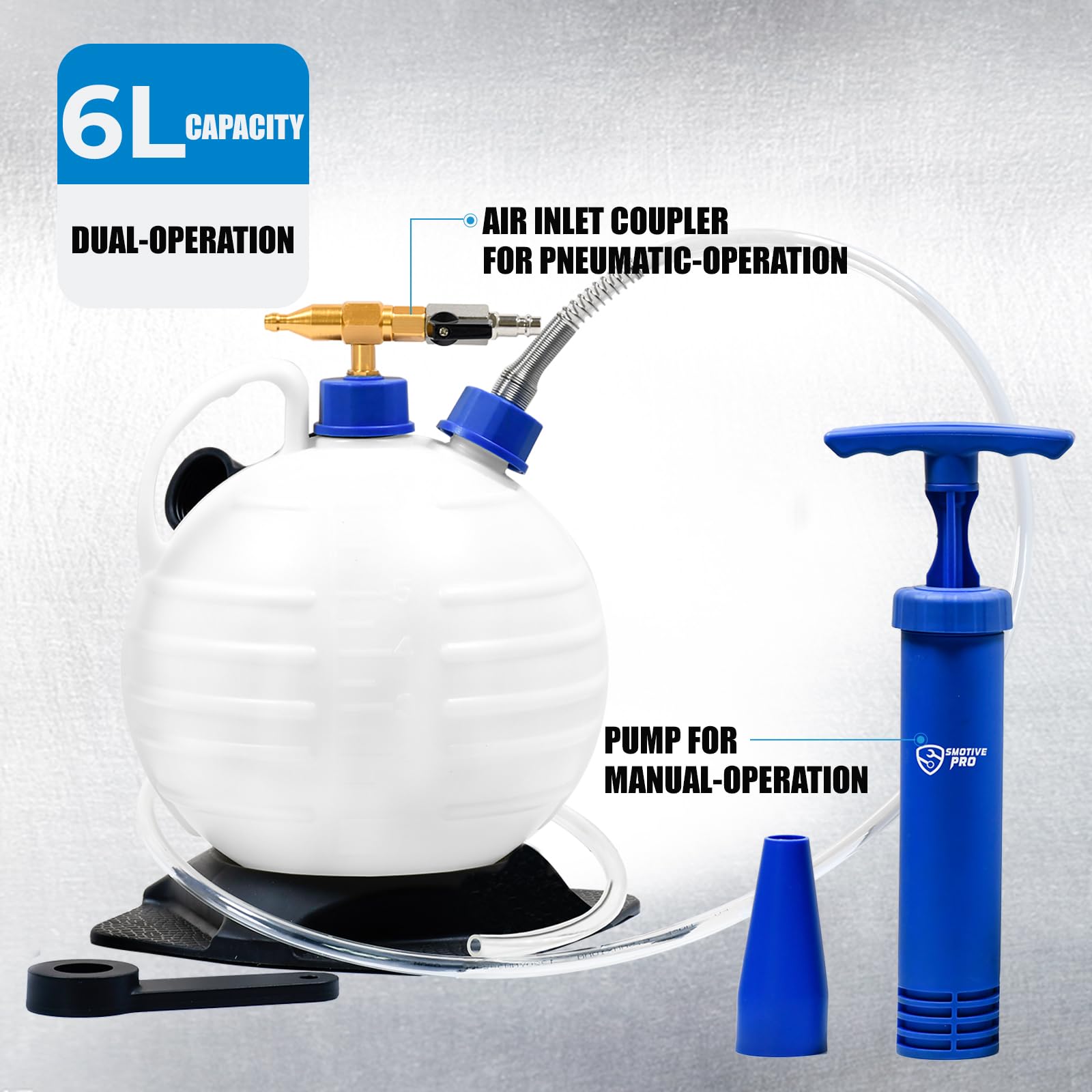

Air inlet coupler Connect this fitting to an air compressor when using pneumatic vacuum extraction.	Main probe and extensions Use the 59 in. main probe or select the 4 mm, 6 mm or 8 mm extension that fits the access path.
Manual operation Use the hand pump when an air compressor is not available.	Graduated container Use the calibrated tank wall to monitor the amount of fluid removed.

Supported Uses

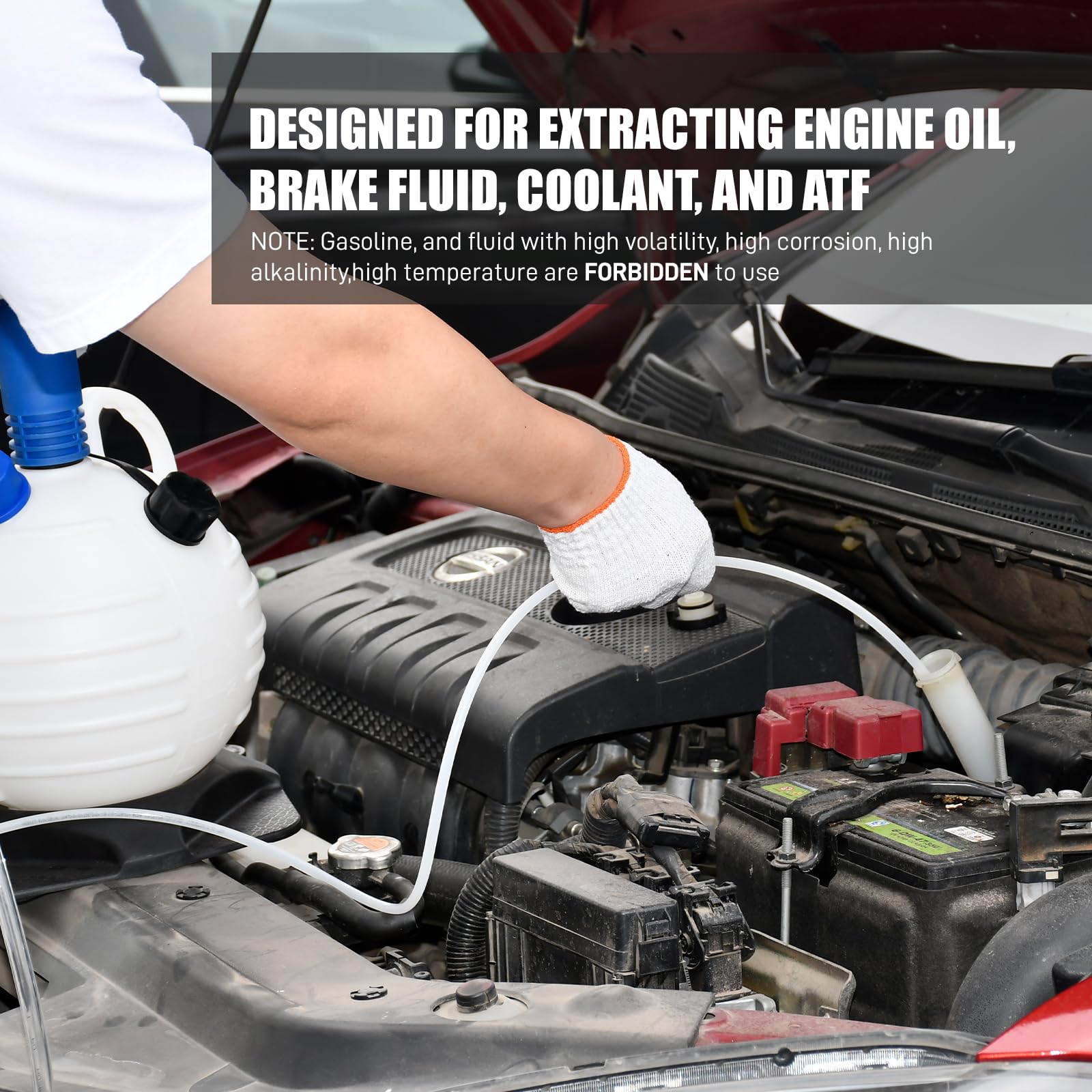

The product is described for engine-oil and transmission-fluid extraction through the dipstick tube. It can also be used for applications such as boats, motorcycles, outdoor power equipment, stationary engines, bilge water and trapped water in plumbing systems where the access path and fluid are suitable.

Before You Extract

• Confirm the probe or extension hose can pass through the dipstick tube without force.
• Choose manual mode when no compressor is available; use pneumatic mode only with a compatible air compressor connection.
• For liquids beyond the listed uses, confirm compatibility and follow the equipment manufacturer’s service procedure.
