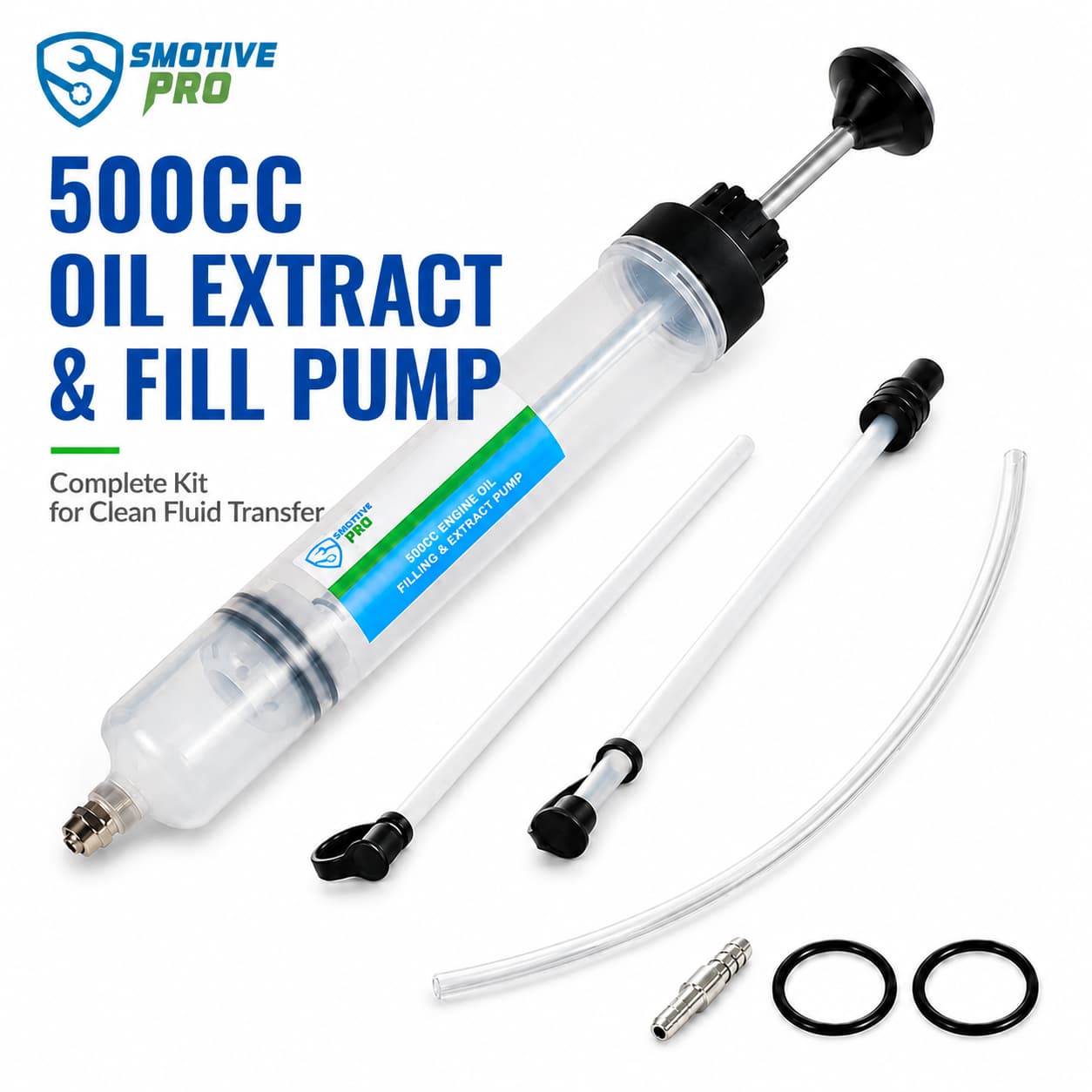

500 cc Fluid Extractor Pump with Extension Hoses

500 cc Manual Fluid Extractor Pump

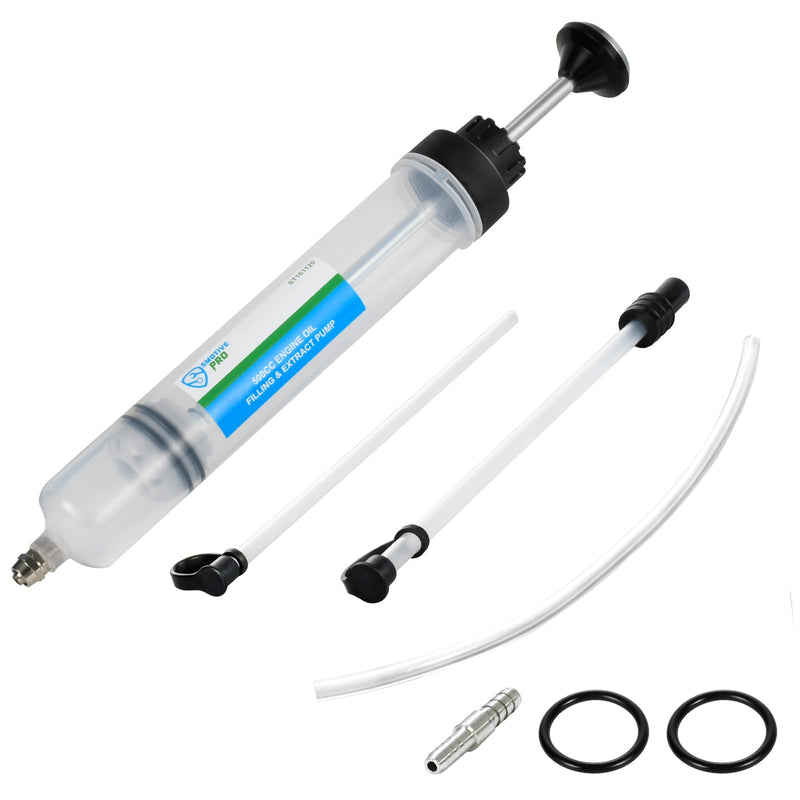

This 500 cc manual fluid extractor pump helps draw out or transfer automotive and equipment fluids through an accessible port or reservoir opening. It uses a 42 cm hose with an 8 mm inner diameter, plus two 22 cm extension tubes with 6 mm and 8 mm inner diameters. Before use, confirm that the selected hose fits the access opening securely without forcing it.

Hose Configuration for Tight Access

• 500 cc capacity: Suitable for controlled, small-volume extraction or transfer.

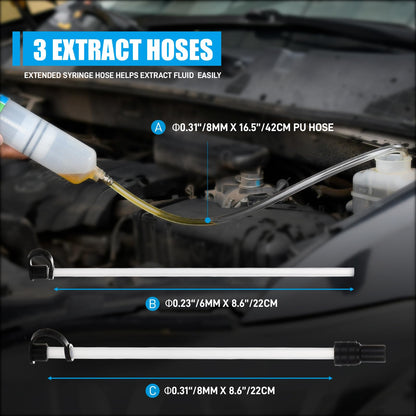

• 42 cm hose: 8 mm inner diameter for reaching deeper or less accessible openings.
• Two 22 cm extension tubes: 6 mm and 8 mm inner diameters for different opening sizes.

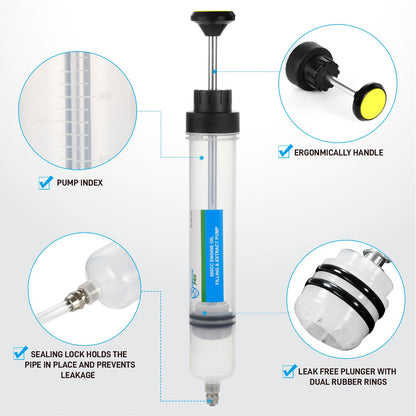

• Clear scale markings: Help monitor the amount of fluid extracted or transferred.

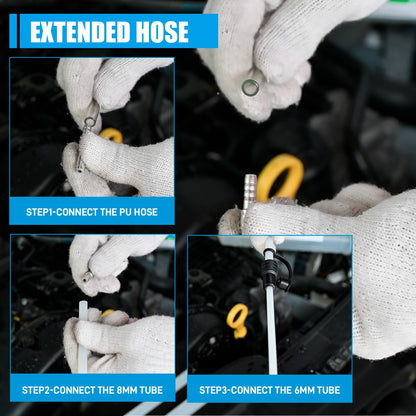

Select the hose or extension tube that fits the service opening without forcing it. A secure connection helps keep the operation controlled when working in narrow engine bays, reservoirs, gearboxes, or other restricted-access areas.

Fluid-Transfer Applications

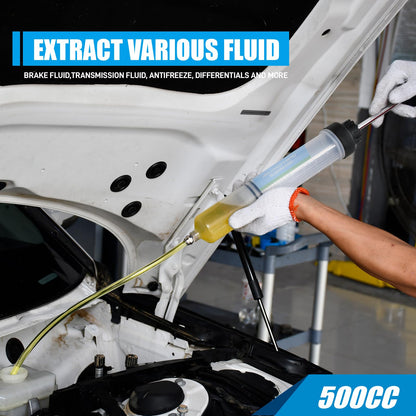

This extractor is suitable for transferring engine oil, gear oil, transmission fluid, coolant, diesel, brake fluid, hydraulic fluid, and water. Use clean hoses for each fluid type and dispose of used automotive fluids according to local regulations.

It can be used for fluid service on cars, motorcycles, ATVs, boats, RVs, farm equipment, and workshop machinery where the service opening is accessible to the selected hose.

Sealing and Use Notes

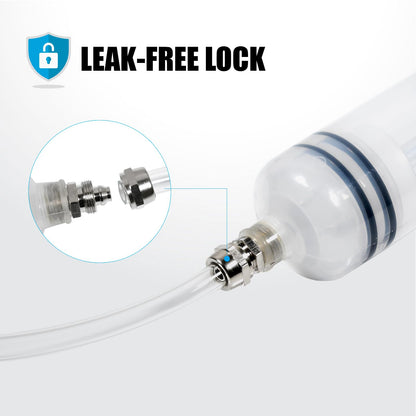

The pump uses dual rubber gaskets and threaded hose connections to help create an airtight seal during extraction or transfer.

• Inspect the hose, gasket, and threaded connections before use.
• Keep the pump upright while transferring fluid and clean spills promptly.
• Follow the vehicle or equipment manufacturer's service procedure for the fluid being handled.
