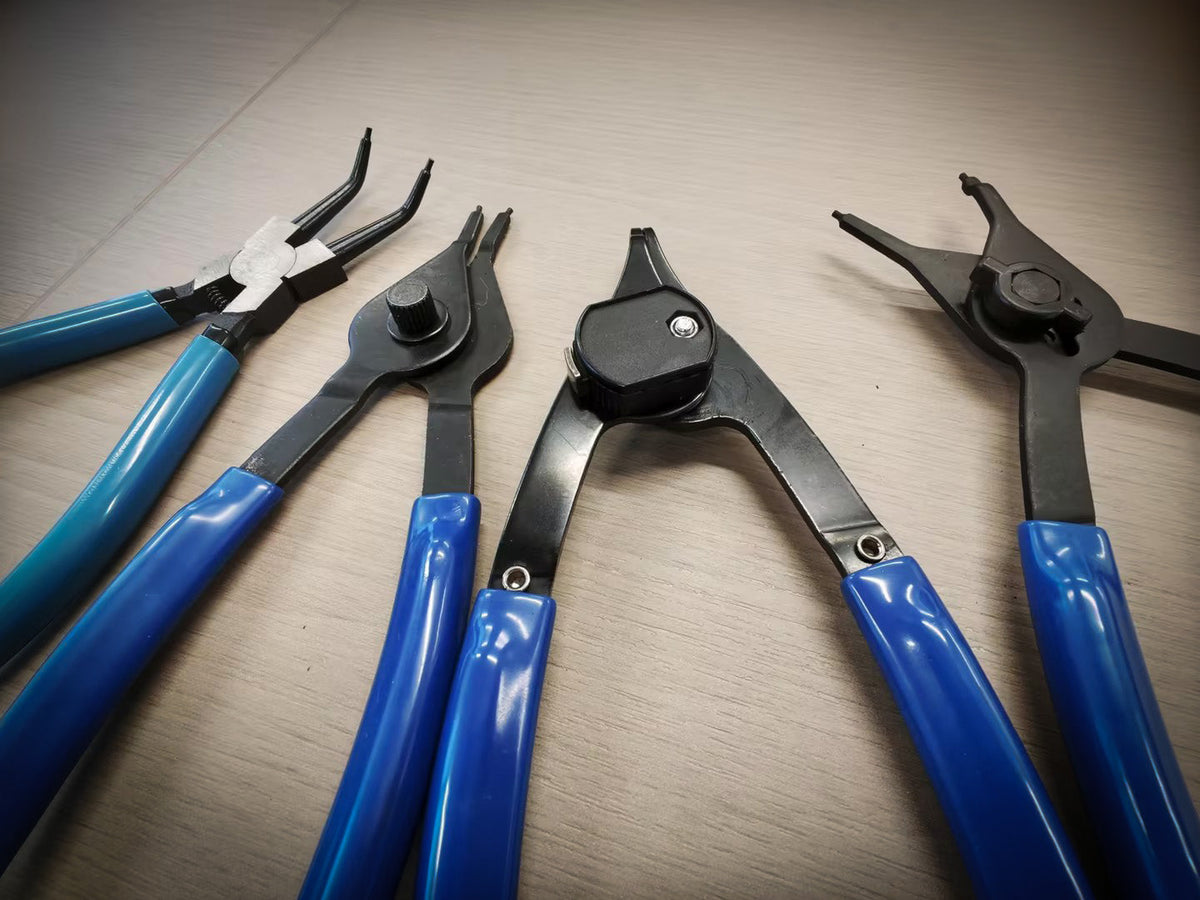

Straight vs 45° vs 90° Snap Ring Pliers: Which One Do You Need?
Snap ring pliers may look similar, but the angle of their tips changes how well they can reach and control a retaining ring. A straight-tip pair can be ideal on an exposed shaft, while the same tool may be awkward or unusable when the ring sits deep inside a housing.
The best choice is not simply the most angled option. It depends on where the ring sits, which direction its holes face, what surrounds it, and whether you can keep the plier tips squarely seated. This guide compares straight, 45-degree, and 90-degree snap ring pliers so you can choose the angle that gives you the safest, most controlled approach.
First, Match the Pliers to the Ring Type
Tip angle solves an access problem, but it does not determine whether the pliers are intended for an internal or external snap ring.
Internal snap rings sit in a groove inside a bore or housing. The ring must usually be compressed to clear the bore. External snap rings sit in a groove around a shaft and must usually be expanded to pass over it.
Before choosing straight, 45-degree, or 90-degree tips, confirm that the pliers move the ring in the correct direction. Then match the tip diameter to the holes in the ring. A tip that is too small can rock or slip; one that is too large may not seat fully.
Straight Snap Ring Pliers
Straight tips extend in line with the plier jaws. They are usually the first choice when the snap ring is exposed and its lug holes face the technician directly.
Best for:
- Exposed shaft ends and open assemblies
- Bench work with a clear, head-on approach
- Rings located close to the edge of a housing
- Jobs where direct visibility and precise alignment matter most
The main advantage of straight tips is control. With the pliers aligned directly with the ring, it is easier to see whether both tips are fully seated and whether the ring is opening or closing evenly.
The limitation is clearance. If a nearby wall, shaft, gear, bearing, or housing blocks the handles, straight pliers may force you to approach at a shallow angle. That increases the chance of a tip slipping out of the ring hole.
45-Degree Snap Ring Pliers
Forty-five-degree tips provide a useful compromise between direct control and side access. They let the handles sit away from nearby components while keeping the tips at a moderate angle to the ring.
Best for:
- Partially recessed snap rings
- Assemblies with moderate obstructions around the ring
- Transmission, hub, pulley, and bearing work where a straight approach is crowded
- Situations where you need a clearer view without moving completely to the side
For many repair jobs, 45-degree pliers are the most versatile angled option. They can improve hand clearance without creating the more pronounced change in force direction found with a 90-degree tip.
However, they are not automatically better than straight pliers. If the ring is fully exposed, a straight pair often provides a simpler sight line. If the ring is deep in a vertical bore, a 45-degree tip may still leave the handles in the way.
90-Degree Snap Ring Pliers
Ninety-degree tips turn sharply away from the jaws, allowing the plier body and handles to remain beside the work area rather than directly above it.
Best for:
- Deeply recessed rings inside housings or bores
- Rings positioned behind shoulders or adjacent components
- Confined areas where the handles cannot line up with the ring
- Applications that require the ring holes to be approached from the side
A 90-degree pair can reach rings that straight pliers simply cannot approach squarely. It can also improve visibility because your hand and the plier body are moved out of the direct viewing path.
The tradeoff is feel. Because the force changes direction through the bent tips, alignment can feel less intuitive. Make sure both tips are fully engaged before applying pressure, and avoid twisting the tool sideways while the ring is under tension.
Quick Comparison
| Tip style | Best access | Main advantage | Common limitation |
|---|---|---|---|
| Straight | Open, head-on access | Clear alignment and direct control | Handles may hit surrounding parts |
| 45° | Offset or partly recessed access | Good balance of reach and control | May not reach a deeply recessed ring |
| 90° | Deep bores and tight side access | Keeps handles beside the work area | Requires careful tip alignment |
Fixed-Tip vs Convertible Pliers
Tip angle is only one part of the buying decision. Snap ring pliers are also available as fixed-tip tools, interchangeable-tip tools, and convertible internal/external designs.
Fixed-tip pliers are dedicated to one action, angle, and usually one tip size. They tend to feel solid and are convenient for repetitive work because there are no tips to swap. A complete fixed-tip set takes more storage space, but each tool is ready to use.
Interchangeable or convertible pliers cover more ring types with fewer tool bodies. They can be practical for occasional repairs or mobile tool kits, but the tips and conversion mechanism must be installed correctly and kept tight.
If you frequently work on transmissions, axles, hubs, pumps, or mixed equipment, a set containing multiple angles and both internal and external configurations usually offers better coverage than a single universal pair.
How to Choose the Right Angle
- Identify the ring. Determine whether it is internal or external and check its hole size.
- Look at the approach path. Decide whether the ring can be reached head-on or whether a housing wall or nearby component blocks the handles.
- Choose the least angle needed. Use straight tips for clear access, 45-degree tips for moderate offset, and 90-degree tips when the tool body must stay beside the opening.
- Check tip engagement. Both tips should sit deeply and evenly in the ring holes before force is applied.
- Move the ring only enough to clear the groove. Excessive expansion or compression can permanently deform the ring.
Common Selection Mistakes
Choosing by angle alone: A 90-degree tool will not help if it is the wrong internal/external type or the tips do not match the ring holes.
Using undersized tips: Small tips may enter the holes but can wobble, damage the lugs, or release suddenly under load.
Working from a poor angle: If the tips are only touching the edges of the holes, stop and change the tool angle rather than forcing the ring.
Overstretching the ring: Expand or compress it only far enough to pass the groove or shaft. Replace a ring that no longer returns to its original shape.
Which Snap Ring Pliers Should You Buy?
If most of your work involves open assemblies, straight pliers may cover the majority of jobs. For general automotive repair, 45-degree pliers add useful access around hubs, pulleys, bearings, and transmission components. When you regularly encounter recessed rings or tight housings, 90-degree pliers become essential.
For mixed repair work, the most practical answer is often a set containing straight, 45-degree, and 90-degree pliers in both internal and external configurations. That lets you choose the approach based on the assembly instead of trying to make one tool fit every location.
