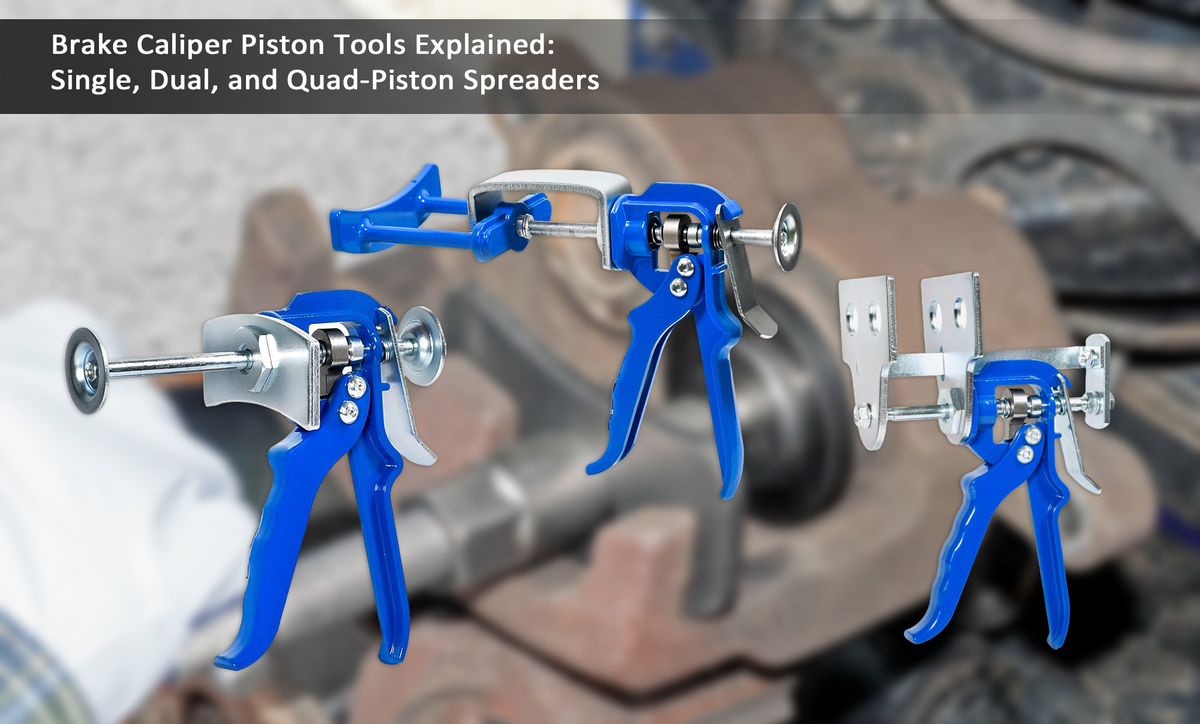

Brake Caliper Piston Tools Explained: Single, Dual, and Quad-Piston Spreaders
New brake pads are thicker than worn pads, so the caliper pistons must move back before the caliper can fit over the rotor again. The right tool makes that step controlled and predictable. The wrong tool can damage a dust boot, cock a piston in its bore, or fight a parking-brake mechanism that was never meant to be pushed straight in.
The first question is not simply “How many pistons are in my caliper?” First determine whether the piston retracts by direct compression, by rotating while it is pressed in, or through an electronic parking-brake service procedure. Piston count then helps you choose the tool shape and the number of contact points.
Start by identifying how your piston retracts
Many front floating calipers use a piston that moves straight back into the bore. A direct-push spreader or compressor is appropriate when the vehicle service procedure calls for direct compression. Keep the tool square to the piston or pad-contact surface, apply pressure gradually, and watch the brake-fluid reservoir because its level can rise.
Some rear calipers with an integrated mechanical parking brake use a threaded piston. These usually need a wind-back tool that turns and presses the piston at the same time. A piston face with slots, holes, or notches is a useful warning sign, but the vehicle service information is the final authority.
An electronic parking brake is different again. If an electric motor is mounted on the rear caliper, use the vehicle's specified electronic parking-brake service mode before any piston retraction. A hand spreader or wind-back tool is not a substitute for the required service procedure.
Single-piston spreaders: simple direct compression
A single-piston spreader is intended for compatible sliding calipers with one directly compressible piston. Its compact contact pad and squeeze-handle design can be useful when access is limited and the piston can be pushed straight back.
This type is a good match for a routine pad job only after you confirm the piston diameter, clearance, and retraction method. It is not the right choice for a dual-piston fixed caliper, a threaded rear piston, or an electronic parking-brake caliper.
Dual-piston spreaders: keep opposing pistons moving evenly
On a compatible dual-piston caliper, the goal is to retract both pistons without putting all the load on one side first. A dual-piston spreader applies controlled force across the caliper's appropriate pad-contact surfaces, helping preserve alignment while you make room for new pads.
Do not assume every two-piston caliper uses the same layout. Confirm where the tool contacts the caliper, whether both pistons are directly compressible, and whether the design has enough room for the spreader. If one piston resists, stop rather than increasing force; corrosion, a seized piston, or a damaged hose may be the real problem.
Quad-piston spreaders: parallel pressure matters more
Fixed multi-piston calipers need even, parallel pressure. A quad-piston press tool can be useful on compatible single-, dual-, or quad-piston layouts within its stated opening range because its pressure bar spreads force over more than one contact point. This is especially helpful when retracting opposing pistons together.
However, more capability does not make a tool universal. Check the caliper's available clearance, piston arrangement, and service instructions. Never force a wide pressure bar into a caliper where it cannot sit squarely.
When a wind-back kit is the better answer
A wind-back kit is for compatible calipers whose pistons must rotate as they retract. These are common on some rear calipers with an integrated mechanical parking-brake mechanism. The correct adapter must engage the piston face, and the correct left- or right-hand thrust bolt must follow the specified direction for that caliper.
A wind-back kit is not a shortcut for every rear brake job. Direct-push, wind-back, and electronic parking-brake procedures are three different tasks. Match the tool to the mechanism, not just to the axle location.
A quick tool-selection checklist
- Read the vehicle service procedure before removing the caliper.
- Identify direct-push, rotate-and-push, or electronic parking-brake operation.
- Confirm piston count, caliper layout, piston diameter, and working clearance.
- Check the brake-fluid reservoir level and protect painted surfaces from spills.
- Apply force slowly, keep the tool aligned, and stop if a piston does not move smoothly.
After reassembly, follow the manufacturer's brake-service procedure, including restoring electronic parking-brake operation where applicable and pumping the brake pedal before moving the vehicle.
