Why Brake Lines Leak and How Proper Flares Prevent It
Why Brake Line Leaks Are a Safety Problem
Brake lines carry hydraulic pressure from the master cylinder to the calipers or wheel cylinders. When the driver presses the brake pedal, that pressure must stay sealed inside the system. A small leak can lower fluid level, introduce air, soften the pedal, and reduce braking force.
Brake fluid leaks should be treated differently from many other vehicle fluid leaks. If a brake line is wet, rusted through, dripping, or leaking at a fitting, the vehicle should not be driven until the problem is repaired and the brake system is tested.
Common Signs of a Brake Line Leak
- Soft or sinking brake pedal when holding steady pressure.
- Brake warning light or low brake fluid in the reservoir.
- Clear to amber fluid around hard lines, hose connections, calipers, wheel cylinders, or the master cylinder.
- Wet flare fittings where the brake tube enters a union, caliper, wheel cylinder, ABS module, or master cylinder.
- Rusty, swollen, kinked, or crushed brake lines under the vehicle.
1. Corrosion on Steel Brake Lines

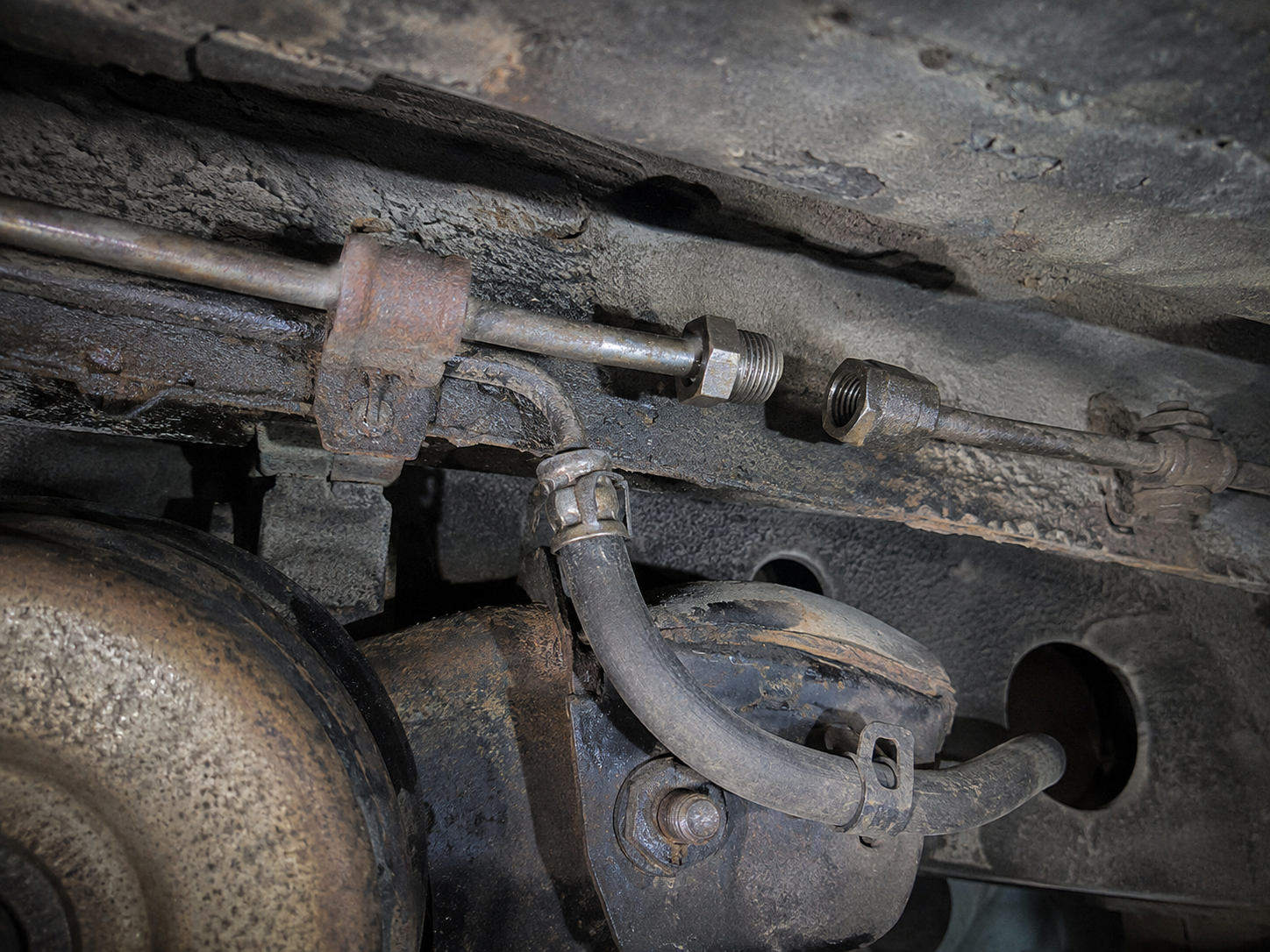

Rust is one of the most common causes of brake line failure, especially in wet climates or areas where road salt is used. Steel lines can corrode from the outside, and fittings can seize from rust around the threads. Once corrosion thins the tube wall, pressure can open a pinhole leak or cause the line to burst.
Pay close attention to areas near the frame, wheel wells, clips, brackets, and low points where moisture and debris collect. Heavy rust on a brake line is not just cosmetic; it can be a structural weakness.
2. Damaged Fittings or Rounded Tube Nuts
Brake line fittings seal by clamping the flared tube end against a matching seat. The threads help pull the flare into place, but the threads are not what seal the brake fluid. If the tube nut is rounded, cross-threaded, stripped, or corroded, it may not apply even clamping force.
Over-tightening is also a problem. If a leaking fitting is tightened harder without inspecting the flare and seat, the flare can deform and leak worse.
3. Cracked, Kinked, or Poorly Routed Lines
Brake lines are exposed to vibration, suspension movement, road debris, and heat. A line that is bent too sharply, rubbing against a bracket, or unsupported between mounting points can fatigue over time. Kinks can restrict flow and weaken the tube wall.
When replacing or repairing a section, the new line should follow a safe route with enough clearance from moving parts, exhaust heat, and sharp edges.
4. Wrong Flare Type for the Fitting
Brake line flare type matters. Common automotive brake connections use either a 45-degree SAE double flare or an ISO/DIN bubble flare, depending on the vehicle and fitting design. These flare shapes are not interchangeable.
A good flare in the wrong fitting can still leak because the mating surfaces do not match. The flare face must seat against the correct port shape so pressure is distributed evenly around the connection.
5. Poor Tube Preparation Before Flaring
Many flare leaks begin before the flare is even formed. The brake tube end should be cut square, cleaned, deburred, and prepared correctly. If the cut is angled, the inner edge has burrs, or the tube slips in the clamp, the flare may form unevenly.
An uneven flare can look acceptable at a glance but still leave a small path for brake fluid to escape under pressure. Good preparation helps the flare form centered, smooth, and strong.
6. Single Flares on High-Pressure Brake Lines
A single flare may be acceptable on some low-pressure lines, but it is not the right choice for most hydraulic brake line repairs. Brake systems operate under high pressure, and the flare must resist cracking and deformation.
That is why double flares are commonly used on SAE brake line fittings. The folded structure gives the tube end more strength and creates a better sealing surface than a basic single flare.
How Proper Flares Help Prevent Leaks
A proper flare does three things. First, it creates a shaped sealing surface that matches the fitting seat. Second, it gives the tube nut a shoulder to clamp against. Third, it helps the brake line hold pressure without the tube pulling through the fitting.
For a reliable repair, the flare should be centered, smooth, free from cracks, and matched to the fitting type. After assembly, the system must be bled and pressure-tested. If any fitting weeps under pedal pressure, stop and inspect the flare and seat instead of simply tightening harder.
What to Check First When a Brake Line Leaks
- Find the exact leak point and clean the area so fresh fluid is easy to see.
- Inspect the hard line for rust, kinks, cracks, rubbing, or crushed sections.
- Check the fitting threads and tube nut condition.
- Confirm the flare type matches the vehicle fitting.
- Inspect the flare face for cracks, uneven thickness, off-center shape, or rough edges.
- Bleed the brake system after repair and check for leaks under firm pedal pressure.
